Airman SDG25 Series Diesel Portable Generator
Availability:
In Store Rental or Purchase Only - Please Call
Brand:Misc.

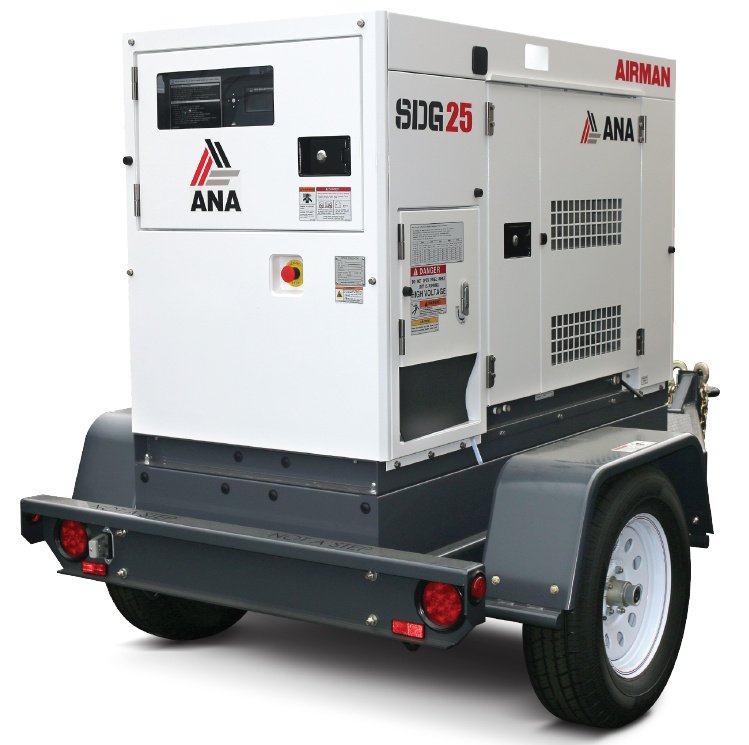

The Airman SDG25 Series Diesel Driven Portable Generator is powered by a Isuzu 4LE2T Diesel engine and provides exceptional performance with over 32 hours of runtime at full load. Delivering 20 kW / 25 kVA of prime power, this generator features auto start as a standard option. The SDG25 includes automatic voltage regulation (+/- 0.5%) and an exterior potentiometer for precise voltage selection.
Available in a Variable Frequency Drive (VFD) model, the VFD allows the 20kW generator to start a 20 HP pump or motor that would typically require a 50 to 55 kW generator, offering significant efficiency and cost savings. The VFD also provides precise control over motor and pump speeds, ensuring versatility while addressing potential light loading issues.
ENGINE MODEL | Isuzu 4LE2T |
OUTPUT @ RATED SPD (1,800 RPM) | 33.3 HP |
PRIME POWER | 25 kVA / 20 kW |
STANDBY POWER | 27.5 kVA / 22 kW |
VOLTAGE 1 PHASE (SWITCHABLE) | 120V / 240V 277V |
VOLTAGE 3 PHASE (SWITCHABLE) | 208V / 240V 416V / 480V |
AMPERAGE 1 PHASE 120V | 60 A x 2 |
AMPERAGE 1 PHASE 240V | 60 A |
AMPERAGE 3 PHASE 208V | 65 A |
AMPERAGE 3 PHASE 240V | 60 A |
AMERPAGE 3 PHASE 480V | 30 A |
RUN TIME @ FULL LOAD | 32 hrs |
INTEGRAL FUEL TANK CAPACITY | 51.5 gal |
EPA EMISSION LEVEL | Tier 4 Final |
OPERATING WEIGHT | 2,205 lbs |
DRY WEIGHT | 1,808 lbs |
GVWR | 2,849 lbs |
TRAILER WEIGHT | 644 lbs |
DIMENSIONS (W/O TRAILER) | 67″ L x 31″ W x 55″ H |
DIMENSIONS (W TRAILER) | 119″ L x 54″ W x 62″ H |
CERTIFICATION | CSA C22.2 No. 100:14 |
