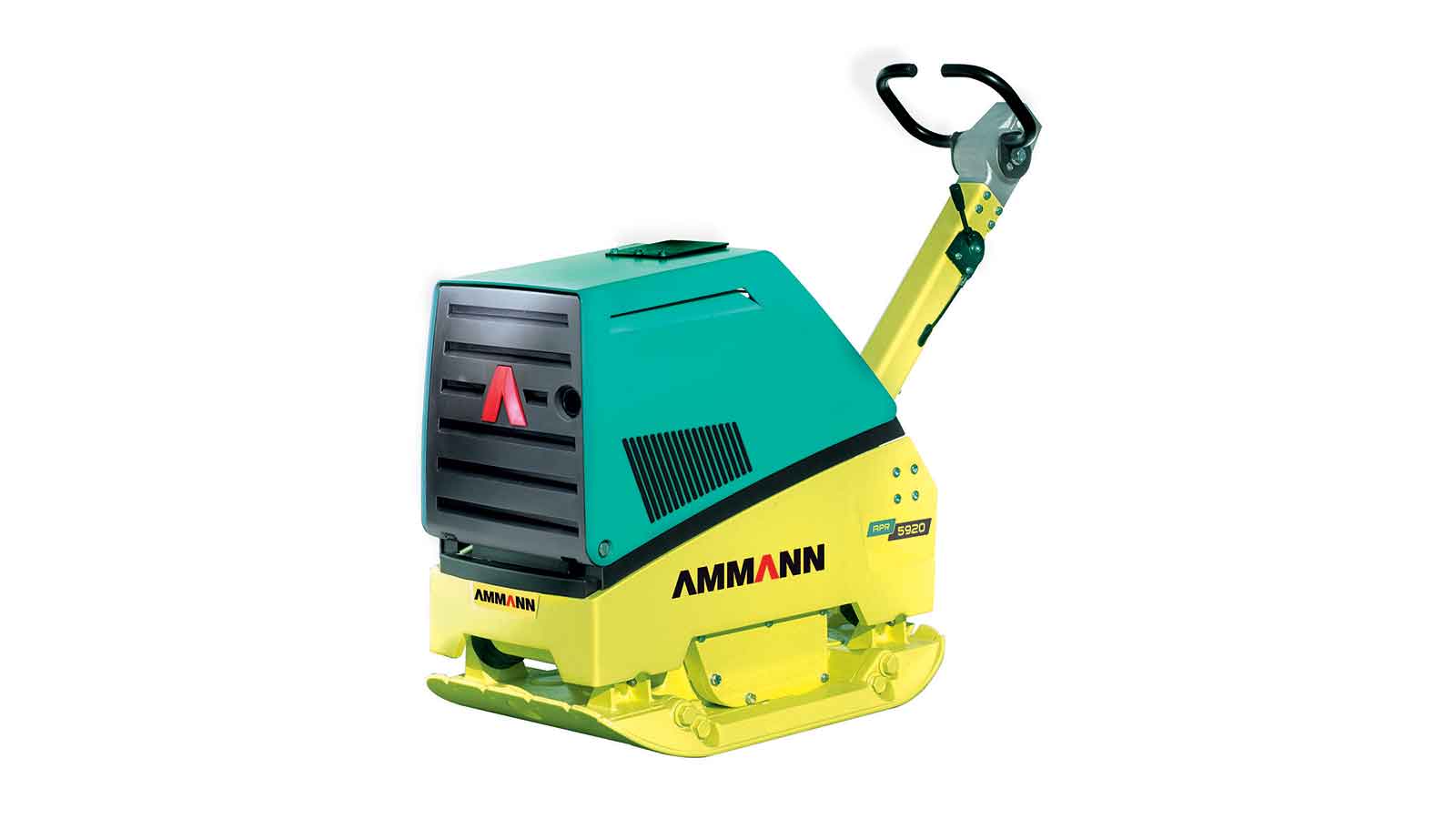

Ammann APR 59/20 Reversible Plate Compactor

Availability:

In stock


Brand:Misc.

$13,150.00

In stock

This reversible vibratory plate offers manoeuvrability and great climbing with an ability to work on 30 percent grades.

High-performance diesel engines power the machines. The variable forward and reverse motion helps the vibratory plates overcome particularly difficult spots in hard-to-reach places.

At 440 kg, it is the heaviest of the APR vibratory plates. Its engine provides 6,6 kw of power and the machines delivers 59 kN of centrifugal force. The engine hood is durable and protective but also grants great accessibility for servicing.

Optional extensions of 75 mm and 150 mm can further improve productivity.

  • Operator friendly, vibration-cushioned guide handle that is foldable for easy transportation
  • Smooth variable hydrostatic forward and reverse motion including the possibility for “on-the-spot” vibration
  • Easy, ergonomic handling
  • Maintenance friendly two-shaft exciter unit with long service intervals and lifetime
  • Wear-resistant, self-cleaning base plate
  • Well-protected, robust centrifugal clutch with wear-resistant V belt
  • Powerful diesel engine
  • Other options include a rubber mat for asphalt paver application, hour meter and an electric starter
SKU: APR5920 Category:
WEIGHT & DIMENSIONS
MACHINE WEIGHT440 kg (970 lb)
WITH EXTENSION PLATES 75 mm (3.0 in)462 kg (1019 lb)
WITH EXTENSION PLATES 150 mm (5.9 in)473 kg (1043 lb)
A = BASE PLATE LENGTH450 mm (17.7 in)
B = MACHINE LENGTH898 mm (35.4 in)
C = WITH HANDLE1453 mm (57.2 in)
D = MACHINE HEIGHT850 mm (33.5 in)
E = HANDLE HEIGHT (WORK)1000 mm (39.4 in)
F = HANDLE HEIGHT (TRANSPORT)1285 mm (50.6 in)
G = MACHINE WIDTH450 mm (17.7 in)



ENGINE
ENGINEHatz 1B40
FUELDiesel
ENGINE OUTPUT6.6 kW (8.8 HP)
AT RPM2900
FUEL CONSUMPTION1.6 l/h (0.4 gal)



COMPACTION FORCES
MAX. VIBRATION FREQUENCY65 Hz (3900 vpm)
MAX. CENTRIFUGAL FORCE59 kN (13 264 lbf)
WORKING SURFACE945 m²/h (10 172 ft²/h)
WITH EXTENSION PLATES 3.0 in (75 mm)1260 m²/h (13 563 ft²/h)
WITH EXTENSION PLATES 5.9 in (150 mm)1575 m²/h (16 953 ft²/h)



MISCELLANEOUS
SPEED35 m/min (115 ft/min)
FUEL TANK5 l (1.3 gal)
GRADEABILITY30 %
MAX. INCLINE ON ALL SIDES25 °
